Intel® 12/13/14 th CoreTM/ Pentium/ Celeron Desktop CPU、2x LAN、1x RS-232；expandable 2x RS-485/232、3x RS232
Large-scale OLED fab control/Multi-GPU AI inspection/Multi-channel motion control/Factory central MES server/Automated optical inspection workstation/Semiconductor production host/High-speed image recording/Test bench main controller/Industrial deep learn
| Product Parameters | ||
| System Parameters | CPU | Intel® 12/13/14 th CoreTM/ Pentium/ Celeron Desktop CPU |
| Chipset | Q670 | |
| BIOS | AMI UEFI BIOS，Support Watchdog Timer | |
| Memory | 4x UDIMM DDR4，MAX128GB | |
| Storage | 1 x M.2 M-Key 2242/2280，SATA 3.0/NVMe；4 x SATA | |
| External I/O | Diaplay | 1x HDMI，MAX 4096 x 2160@30 Hz； 1x DVI-D，MAX 1920 x 1200@60Hz； 1x VGA，MAX 1920 x 1200@60Hz |
| LAN | 1x LAN，Intel® I219-V； 1x LAN，Intel® I225-V | |
| COM | 1x RS-232；expandable 2x RS-485/232、3x RS232 | |
| USB | 6x USB3.0；2x USB2.0 | |
| Audio | 1x Line-in、1x Line-out、1x Mic-in，Realtek Audio HDA Codec | |
| Internal Expansion | USB | 1x USB2.0 ，Type-A |
| M.2 | 1 x M.2 E-Key 2230， support WIFI +Bluetooth Module | |
| SIM | / | |
| PCIe | 1x PCIe 16x or 8x（4.0）； 1x PCIe 16x or 8x（4.0）； 3x PCIe 4x（4.0）； 1x PCIe 4x（3.0） | |
| PCI | 1 x PCI | |
| System | OS | Windows, Linux |
| Power supply | Input voltage | 220V AC IN，Three-hole pin plug |
| Power supply | 300/650/850/1000W，ATX | |

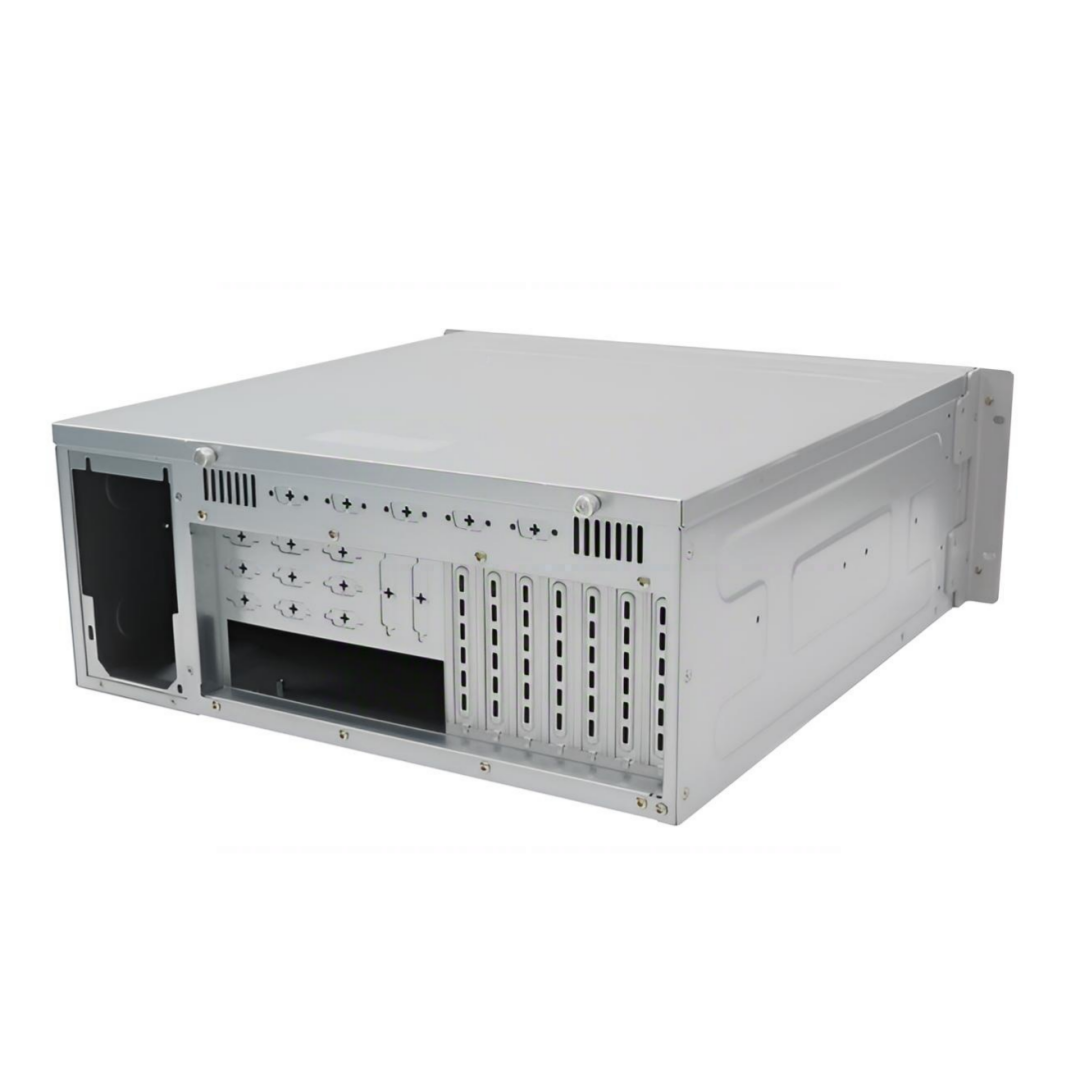

| Installation | rack-mounted industrial computer standard | |
| Dimension | 176x430x471.4mm（HxWxD） | |
| Net weight | 11.8kg | |
| Environmental parameters | Operating temperature | 0~60°C，With 0.7ms airflow |
| Storage temperature | -25°C ~70°C， 60°C @ 95% ( non-condensing) | |
| Relative humidity | 10 ~ 95% @ 40°C ( non-condensing) | |
| EMC | CE、FCC | |
| Ordering information | ||||||
| Model | CPU | MEM | SSD(M.2) | SSD(2.5") | HDD(3.5") | Expansion Module |
| HRC-UA-Q670/I3-12100 | I3-12100 | 8G/16G /32G /8G*2 /16G*2 /32G*2/8G*4/16G*4/32G*4 | 128G/256G/512G/1T | 512G/1T/2T/4T | 1T/2T/4T/8T/10T/12T/16T/18T/20T/22T/24T | 4G/WiFi |
| HRC-UA-Q670/I5-12400 | I5-12400 | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi | ||
| HRC-UA-Q670/I7-12700 | I7-12700 | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi | ||
| HRC-UA-Q670/I7-12700K | I7-12700K | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi | ||
| HRC-UA-Q670/I9-12900K | I9-12900K | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi | ||
