Intel®8th/9thgenCore™i3/i5/i7/i9&Pentium®/Celeron®processor、2xLAN、2xDB9(RS232/422/485；expandable2xRS232，2xRS232/422/485)
Large-scale OLED fab control/Multi-GPU AI inspection/Multi-channel motion control/Factory central MES server/Automated optical inspection workstation/Semiconductor production host/High-speed image recording/Test bench main controller/Industrial deep learn
| Product Parameters | ||
| System Parameters | CPU | Intel®8th/9thgenCore™i3/i5/i7/i9&Pentium®/Celeron®processor |
| Chipset | Z390 | |
| BIOS | Insyde | |
| Memory | 4xUDIMMDDR4，MAX128GB | |
| Storage | 1xM.2M-Key2242/2280，SATA/NVMe；4xSATA | |
| External I/O | Display | 1xHDMI，Support4K@30Hz；1xDP，Support4K@60Hz； 1xVGA，Support1920x1200@60Hz |
| LAN | 1xLAN，Intel®I219-V；1xLAN，Intel®I210 | |
| COM | 2xDB9(RS232/422/485；expandable2xRS232，2xRS232/422/485) | |
| USB | 4xUSB3.2；2xUSB2.0 | |
| Audio | 1xLine-in、1xLine-out、1xMic-in，RealtekALC897 | |
| Internal Expansion | USB | 2xUSB3.2；2xUSB2.0 |
| M.2 | 1×M.2E-Key2230slot,supportsWi-Fi6E&Bluetooth5.3,compatiblewithCNViand PCIe3.0signals | |
| SIM | / | |
| PCIe | 2×PCIe3.0x16slots(supports1×16or2×8mode） 3×PCIe3.0x4slots(x4signal) | |
| PCI | 2xPCI | |
| System | OS | Windows10，Windows11，Linux |
| Powersupply | Input voltage | 220VACIN，Three-holepinplug |
| Power supply | StandardATXpowersupply | |

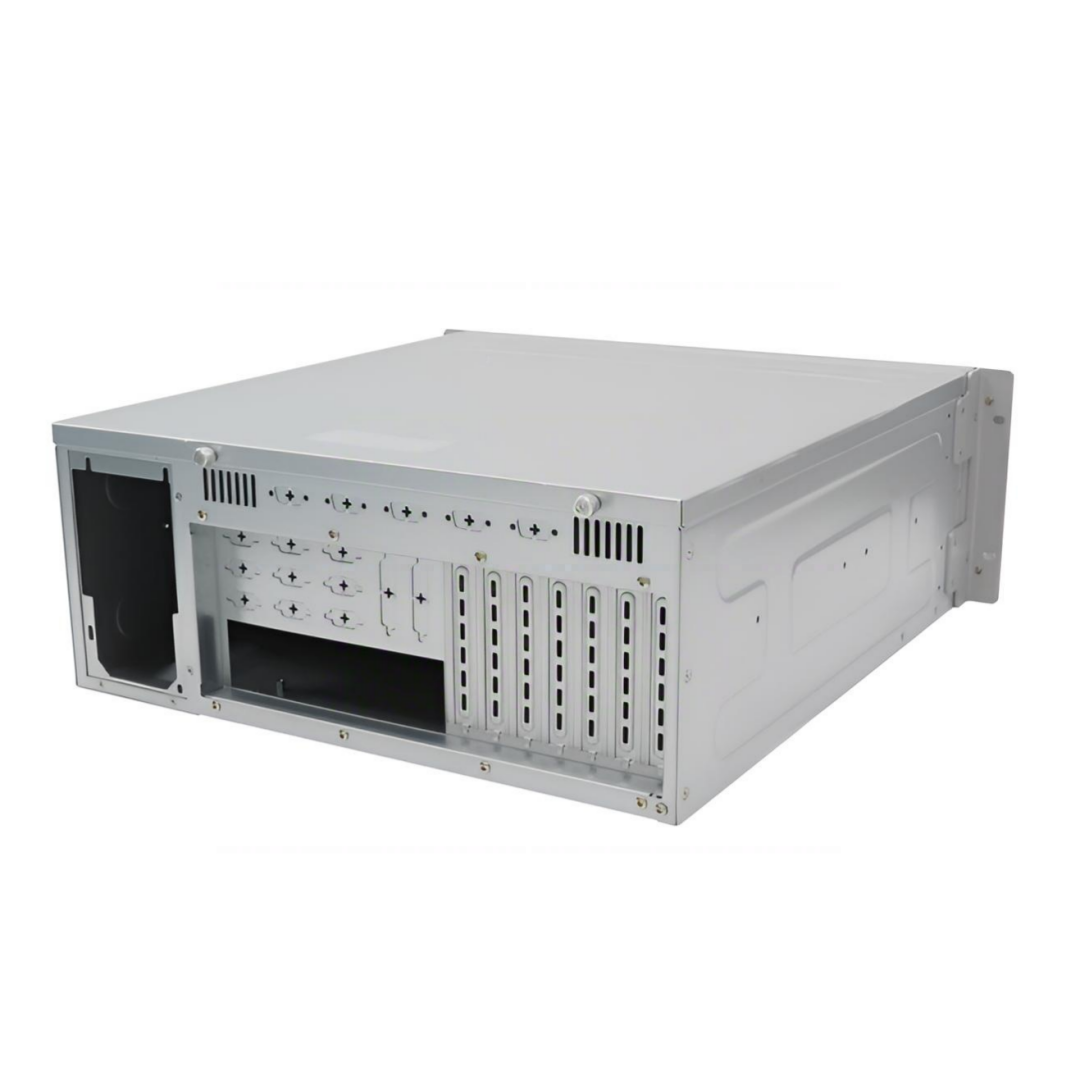

| Mechanical parameters | Installation | rack-mountedindustrialcomputerstandard |
| Dimension | 176x430x471.4mm（HxWxD） | |
| Netweight | 11.8kg | |
| Environmental parameters | Operating temperature | 0~60°C，With0.7/msairflow |
| Storage temperature | -40°C~85°C，60°C@95%((non-condensing) | |
| Relative humidity | 10~95%@40°C(non-condensing） | |
| EMC | CE、FCC | |
| Orderinginformation | |||||
| Model | CPU | MEM | SSD | HDD | Expansion Module |
| HRC-UA-Z390D | i3-8100 i5-8400 i7-8700 | 8G/16G/32G /64G/128G | 128G/256G/ 512G/1T（M.2） | 1T/2T/4T/8T | / |
