HC6110

Intel® 6th~9thGen Core™Processors，i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700、3x LAN、2x RS-232；1xRS-232/422/485; 3x RS-485/232

Intel® 6th~9thGen Core™Processors,i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700
Support for 2 independent displays via dual DP and one VGA port with resolution up to 4K UHD
2 x DDR4 SO-DIMM sockets support up to 64GB memory
3 x Gigabit LAN(2 x Intel i210-AT and 1 x Intel i219-LM)
2x RS-232; 1xRS-232/422/485;3x RS-485/232
Compact and fanless design

Product Parameters
System parameters	CPU	Intel® 6th~9thGen Core™Processors，i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700
	Chipset	H110
	BIOS	AMI 64Mbit UEFI
	Memory	2x SODIMM DDR4，MAX 64GB
	Storage	1x M.2 M-Key 2280，SATA 3.0; 1 x SATA，support 2.5''SSD/HDD
External I/O	Display	2x DP，MAX 4096 x 2304@60Hz； 1x VGA，MAX 1920 x 1080@60Hz； DP+DP/DP+VGA Independent dual display
	Ethernet	1x LAN，Intel®I219LM 2x LAN，Intel® I210AT
	COM	2x RS-232；1xRS-232/422/485; 3x RS-485/232
	USB	4x USB3.0；4x USB2.0
	Audio	1x Line-out、1x Mic-in，Realtek ALC662
Other	Remote	1x REMOTE
Other	Reset	Support BIOS reset by long-pressing the button during shutdown
Internal Expansion	USB	1xUSB2.0，Type-A
	MiniPCIe	1x Full size miniPCIe，support WLAN/WWAN
	SIM	-
	PCIe	-
	PCI	-
System	OS	Windows 7(Only 6th generation)Windows 10，centos 7/8，ubuntu 18.04~24.04 etc.
Power supply	Input voltage	24V DC IN，(Optional 9-36V configuration)
Power supply	Power consumption	MAX 120W
Mechanical parameters	Installation	wall-mounted installation

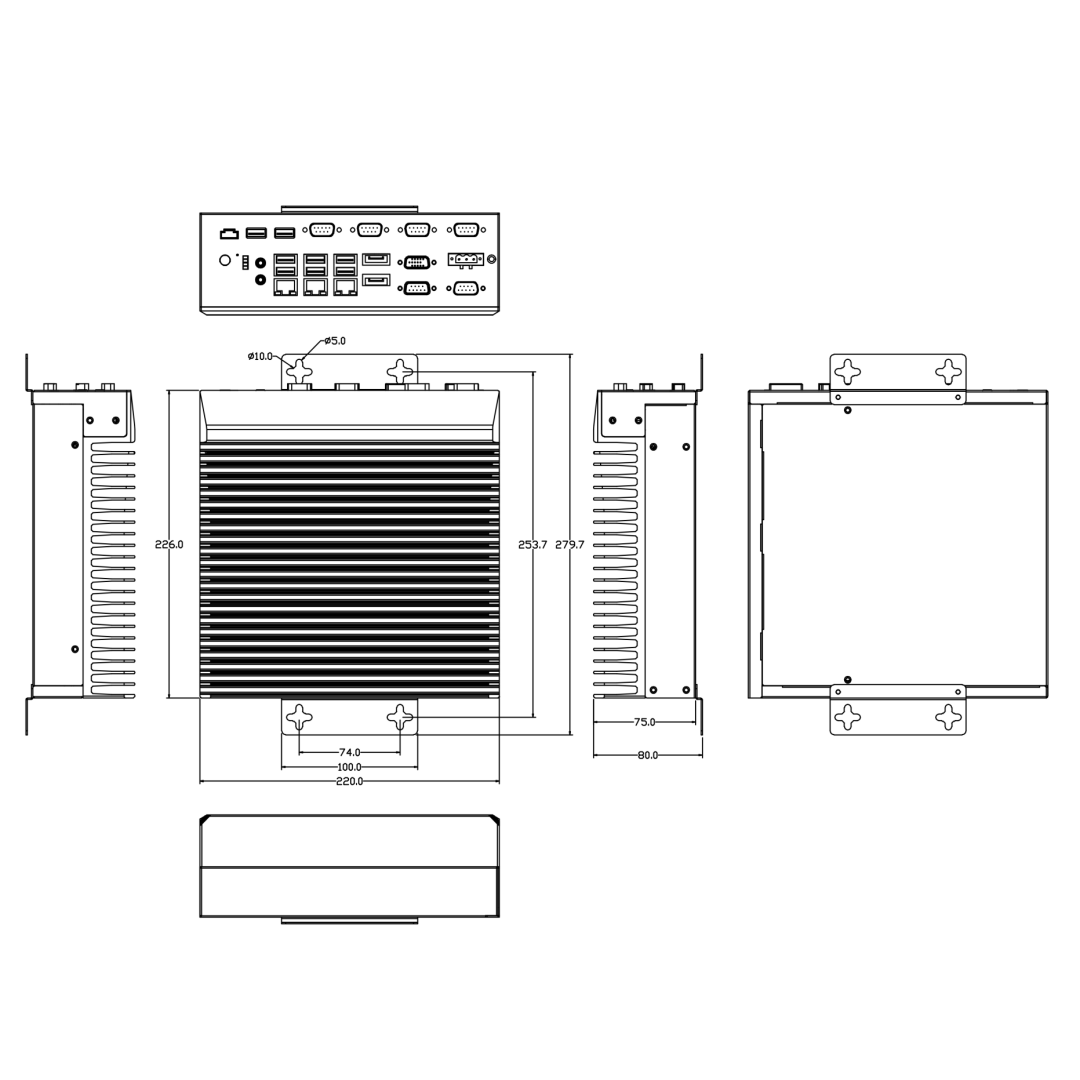

	Dimensions	220x226x75mm
	Net weight	3.3kg
Environmental parameters	Operating temperature	0~50°C，with an airflow of 0.7 m/s
	Storage temperature	-20°C ~60°C， 60°C @ 95% (non-condensing)
	Relative humidity	10 ~ 95% @ 40°C(non-condensing)
	EMC	CE、FCC
