HC6100

HC6100

Intel® 6th~9th Gen Core™ Processors，i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700、3x LAN、1x RS-232；1x RS-232/422/485

Key Features:

  • Intel®6th/7th/8th/9th Gen Processors,i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700
  • Support for 2 independent displays via dual DP and one VGA port with resolution pu to 4K UHD
  • 2 x DDR4 SO-DIMM sockets support up to 32GB memory
  • 3 x Gigabit LAN(2 x Intel i210-AT and 1 x Intel i219-LM)
  • 1x RS-232；1x RS-232/422/485
  • Compact and fanless design

Applications:

Machine vision AI computing/GPU defect inspection/Multi-axis motion control/High-speed data acquisition/Industrial AI workstation/OLED production control/Automation test equipment/High-frame-rate image processing/Industrial signal analysis/Deep learning

Contact Us

Product Details

Product Parameters
System parametersCPUIntel® 6th~9th Gen Core™ Processors，i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700
ChipsetH110
BIOSAMI 64Mbit UEFI
Memory2x SODIMM DDR4，MAX 64GB
Storage1x M.2 M-Key 2280，SATA 3.0; 1 x SATA，support 2.5''SSD/HDD
External I/ODisplay

2x DP，MAX 4096 x 2304@60Hz；

 1x VGA，MAX 1920 x 1080@60Hz；

DP+DP/DP+VGA Dual Dedicated Graphics

Ethernet

1x LAN，Intel®I219LM

2x LAN，Intel®I210AT

COM1x RS-232；1x RS-232/422/485
USB4x USB3.0；2x USB2.0
Audio1x Line-out、1x Mic-in，Realtek ALC662
OtherREMOTE-
RESETSupport resetting BIOS by long-pressing during shutdown
Internal  ExpansionUSB-
MiniPCIe1x Full size miniPCIe，support WLAN/WWAN
SIM-
PCIe-
PCI-
SystemOSWindows 7(Only 6th generation)Windows 10， centos 7/8， ubuntu 18.04~24.04 etc
Power supplyInput voltage24V DC IN，(Optional 9-36V configuration)
Power consumptionMAX 120W
Mechanical parametersInstallationwall-mounted installation

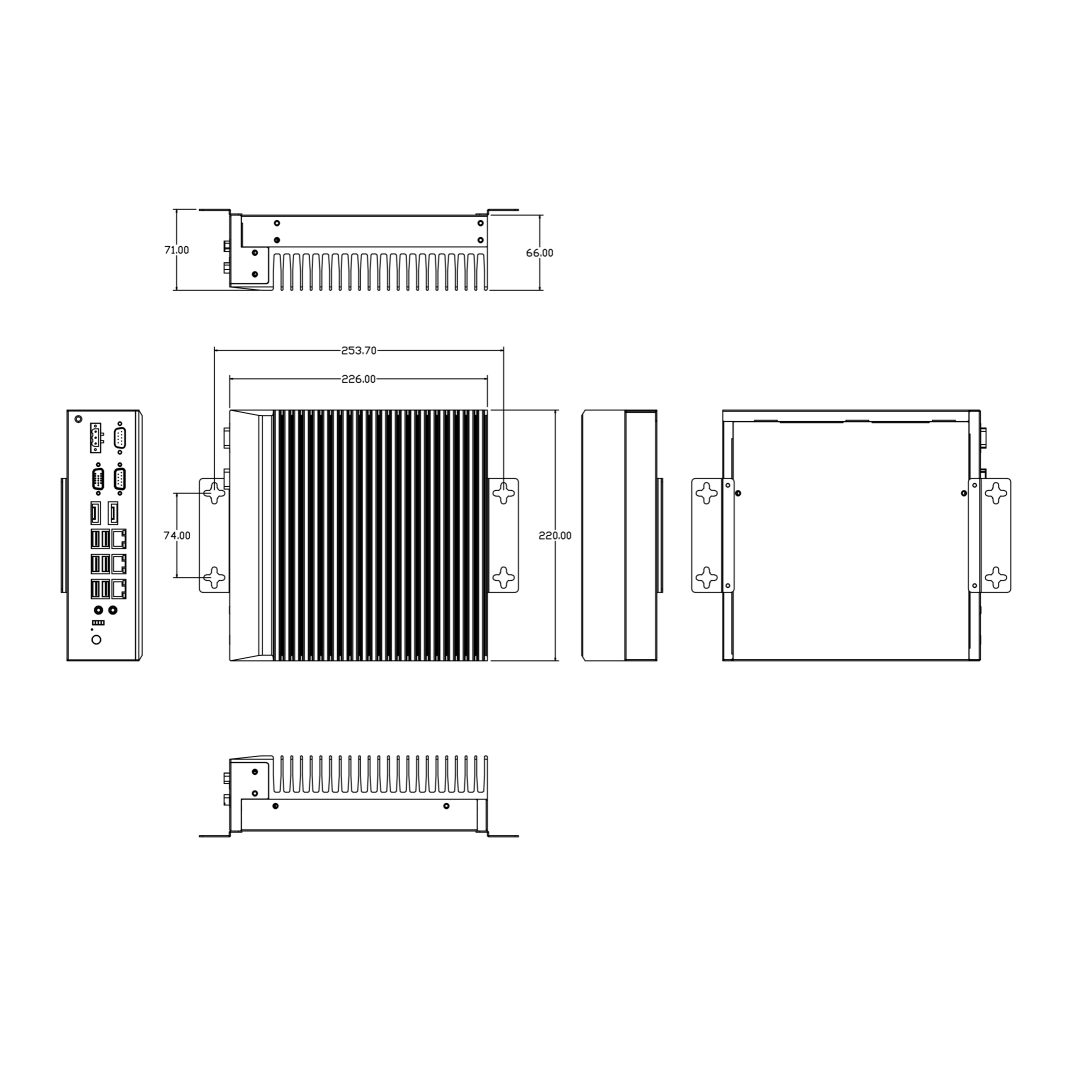

Dimensions220x226x68mm
Net weight3.0kg
Environmental parametersOperating temperature0~50°C，with an airflow of 0.7 m/s
Storage temperature-20°C ~60°C，60°C @ 95% (non-condensing）
Relative humidity10 ~ 95% @ 40°C(non-condensing)
EMCCE、FCC


Ordering information
ModelCPUMEMSSD(M.2)SSD(2.5")Expansion Module
HC6100-C6XXXi5-6400

8G

 /16G

/32G

/8G*2

/16G*2

128G/256G/512G/1T512G/1T/2TWIFI/4G
HC6100-C8XXXi5-8400128G/256G/512G/1T512G/1T/2TWIFI/4G
HC6100-M6XXXi7-6700128G/256G/512G/1T512G/1T/2TWIFI/4G
HC6100-M9XXXi7-9700128G/256G/512G/1T512G/1T/2TWIFI/4G
