HM512

Intel®11th Gen CoreTM i3/i5/i7 Processor，i3-1115G4/i5-1135G7/i7-1165G7、4x LAN、3x RS-232，2x RS-485

OLED production control/SoftPLC motion control/Machine vision inspection/MES edge gateway/AGV vehicle control/Packaging automation

Product Parameters
System parameters	CPU	Intel^®11th Gen Core^TM i3/i5/i7 Processor，i3-1115G4/i5-1135G7/i7-1165G7
	Chipset	Intel^® SoC Integrated
	BIOS	AMI 128Mbit SPI Flash
	Memory	2x SODIMM DDR4，MAX 64GB
	Storage	1x M.2 M/B-Key 2280，SATA3.0；1x SATA
External I/O	Display	1x HDMI，MAX 4096 x 2304@60Hz
	Ethernet	4x LAN，Intel i210-AT
	COM	3x RS-232，2x RS-485
	USB	4x USB3.0
	Audio	1 x Line out/Mic in
Other	Remote	Support remote switching, integrated in the power supply part
	Reset	Support BIOS reset by long-pressing the power button when shutdown
	SIM	1x Nano SIM
	M.2	1x M.2 E-Key 2230，support Wi-Fi ；1x M.2 B-Key 3052，support 4G/5G
	USB2.0	2x USB2.0，Header
System	OS	Windows 10 IoT LTSC、Linux
Power supply	Input voltage	24V DC IN，4PIN Phoenix
Power supply	Power	MAX 120W

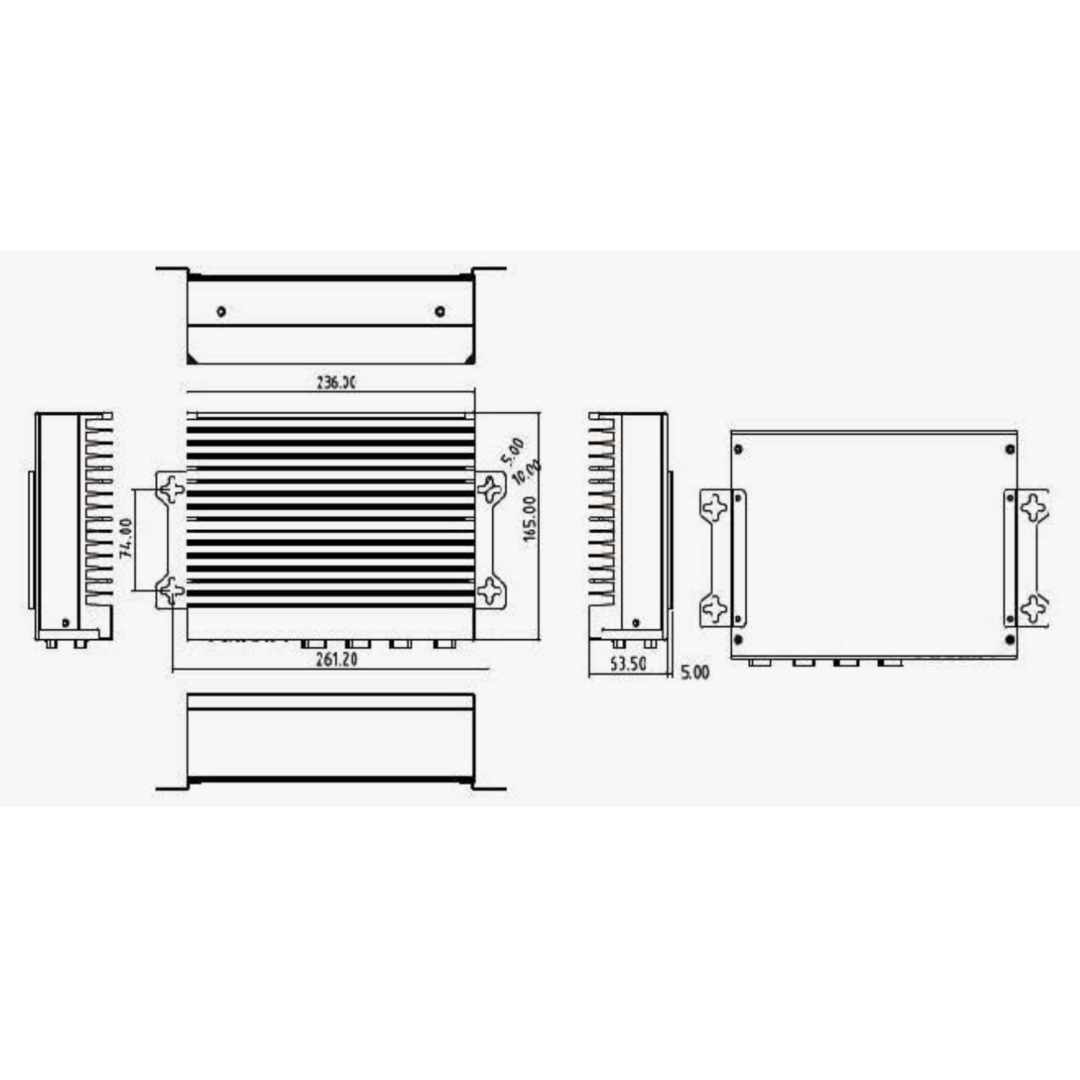

Mechanical parameters	Installation	Wall-mounted installation (rail optional)
	Dimensions	236 x 165 x 63.5mm（LxWxH）
	Net weight	2.2 kg
Environmental parameters	Operating temperature	0~50°C，with an air flow of 0.7 meters per second
	Operating temperature	-20°C ~60°C， 60°C @ 95% (non-condensing)
	Relative humidity	10 ~ 95% @ 40°C(non-condensing)
	EMC	CE、FCC
