7"TFT-LCD、10-Point Capacitive Touchscreen、200.2 x 134.9 x 40.0 mm、The front panel has an IP65 rating
Machine vision workstation display/Production line HMI display/PLC matching touch monitor/Automation cabinet display/AGV control terminal screen/EV charging station touch display/Water treatment monitoring screen/Packaging equipment touch monitor/Medical
| Product Parameters | ||
| LCD Screen | Screen type | 7"TFT-LCD |
| Resolution | 800 x 480/1024 x 600 | |
| Viewing angle (CR>=10) | -70～70°(H),-50~70° (V) | |
| Maximum color | 16.2M | |
| Luminance | 350 cd/m2 | |
| Contrast ratio | 500:1 | |
| Backlight type | TFT-LCD | |
| Backlight lifespan | 35,000h | |
| Touch Screen | Touch type | 10-Point Capacitive Touchscreen |
| Interface type | USB2.0 | |
| Transmittance | >85% | |
| Surface hardness | Mohs 7H | |

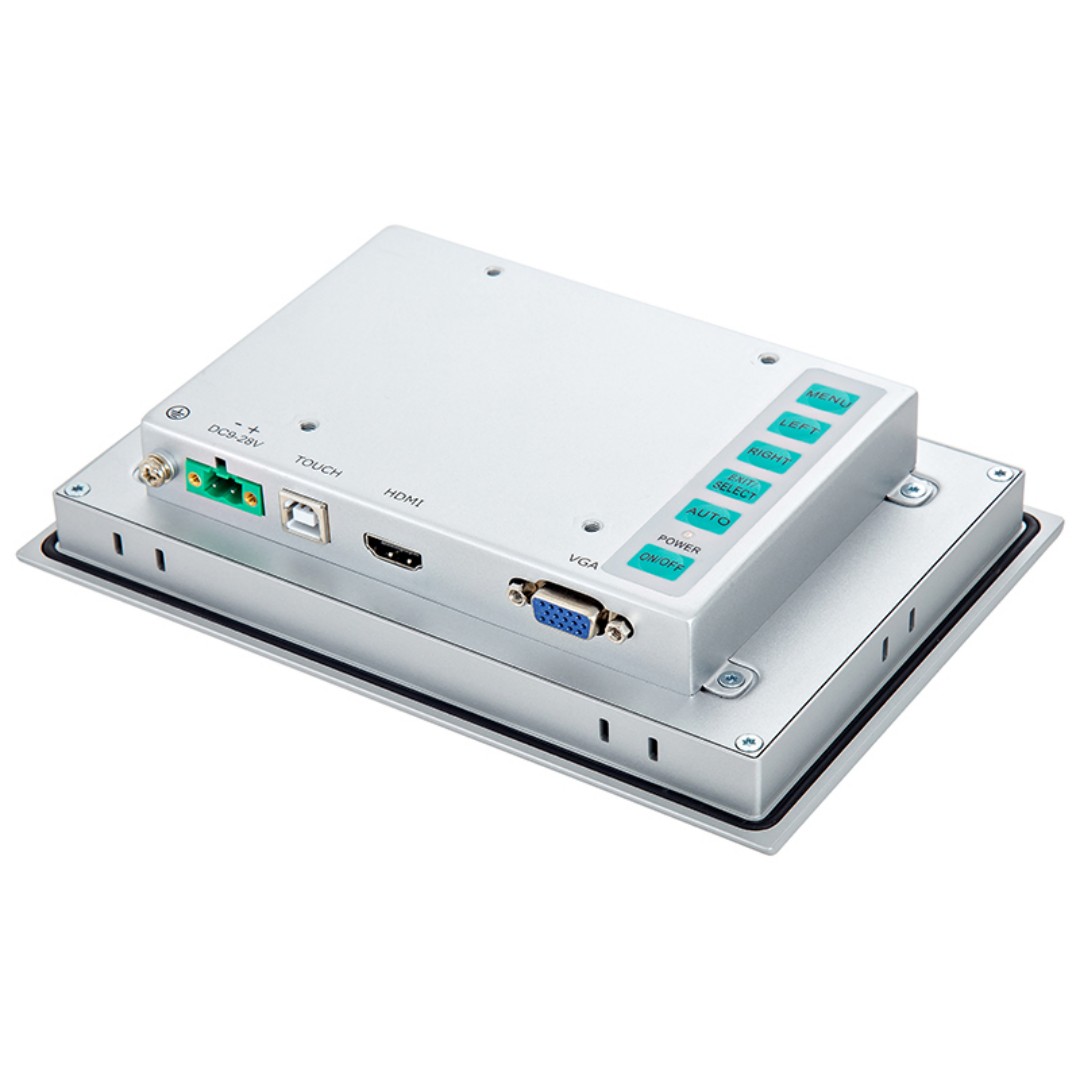

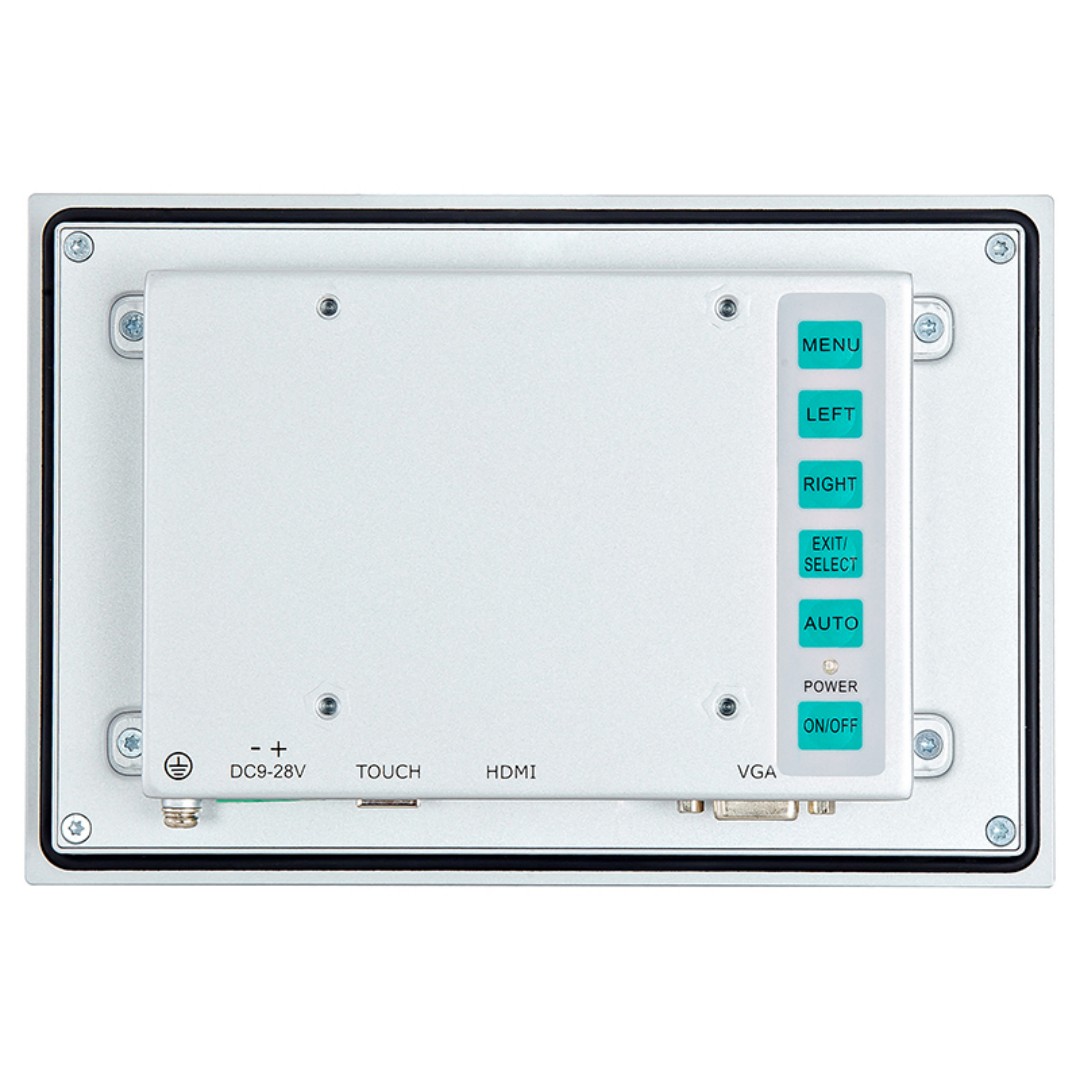

| Overview | Display interface | VGA,HDMI |

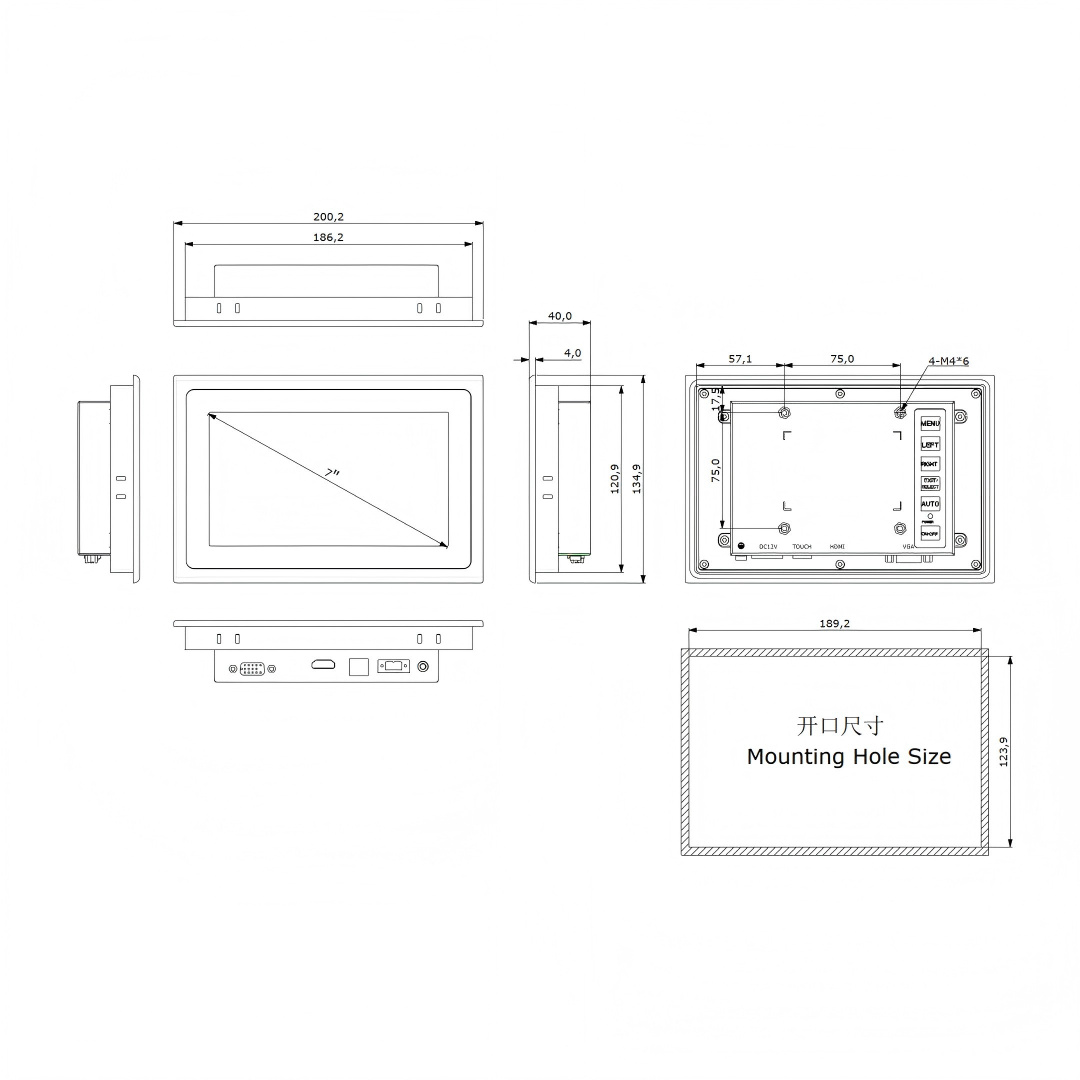

| Size | 200.2 x 134.9 x 40.0 mm | |
| System | OS | - |
| Environmental parameters | Operating temperature | 0℃~60℃ |
| Storage temperature | -20℃～70℃ | |
| Storage humidity | 10 ~ 90% @ 30°C (non-condensing) | |
| Vibration resistance | 5~500 Hz,1Grms (operating,ramdom) | |
| Protection level | The front panel has an IP65 rating | |
