Comprehensive portfolio of industrial computers, edge gateways, and embedded systems for demanding applications
11.6"TFT-LCD、10-Point Capacitive Touchscreen、298.9 x 191.3 x 42.5 mm、The front panel has an IP65 rating
Machine vision workstation display/Production line HMI display/PLC matching touch monitor/Automation cabinet display/AGV control terminal screen/EV charging station touch display/Water treatment monitoring screen/Packaging equipment touch monitor/Medical
| Product Parameters | ||
| LCD Screen | Screen type | 11.6"TFT-LCD |
| Resolution | 1920 x 1080 | |
| Viewing angle (CR>=10) | -89～89°(H),-89~89° (V | |
| Maximum color | 16.7M | |
| Luminance | 220cd/m2 | |
| Contrast ratio | 500:1 | |
| Backlight type | LED | |
| Backlight lifespan | 30000h | |
| Touch Screen | Touch type | 10-Point Capacitive Touchscreen |
| Interface type | USB2.0 | |
| Transmittance | >85% | |
| Surface hardness | Mohs 7H | |
| Overview | Display interface | VGA,HDMI |

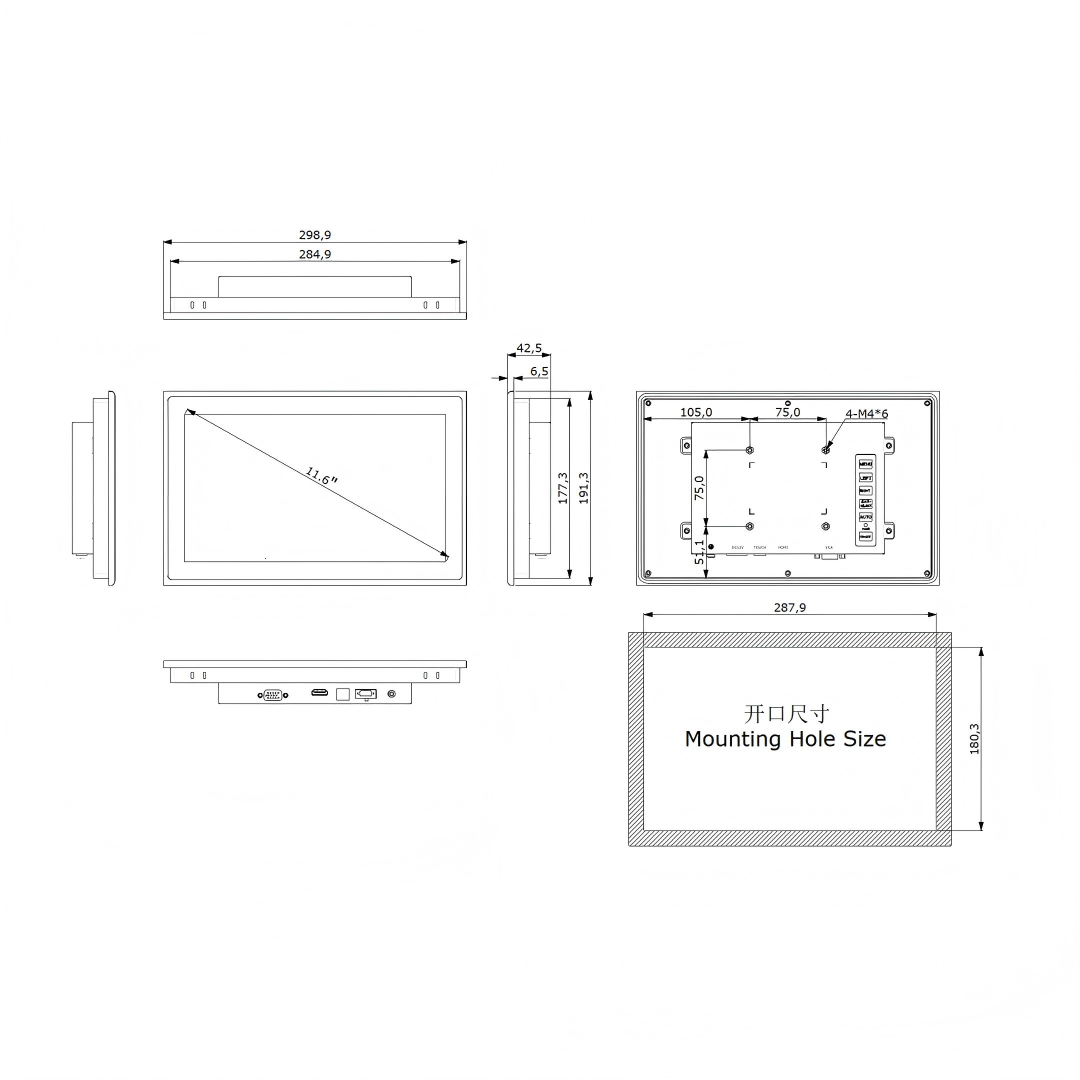

| Size | 298.9 x 191.3 x 42.5 mm | |
| System | OS | Windows® 7/8/10, WES 7, Linux |
| Environmental parameters | Operating temperature | 0℃~60℃ |
| Storage temperature | -20℃~70℃ | |
| Storage humidity | 10 ~ 90% @ 30°C (non-condensing) | |
| Vibration resistance | 5~500 Hz,1Grms (operating,ramdom) | |
| Protection level | The front panel has an IP65 rating | |
Contact Our engineering team for further discussion!
