J1900/J6412/N97、2 x GbE RJ45 intel i210-AT、2xDB-9COM1&COM2,RS-232/485
Production line HMI/SCADA monitoring/MES operation terminal/Food processing control/Pharmaceutical workshop panel/Water treatment control/EV charging station terminal/Automotive assembly control/Warehouse management touch terminal/Smart energy substation
| Specifications | ||
| System | ||
| Model | HPM132-AC7 | |
| Processor*1 | J1900: 4-Core up to 2.42GHz J6412: 4-Core up to 2.60GHz N97: 4-Core up to 3.6GHz | |
| Memory*2 | 1 SODIMM slot ,The m emory type is determined by the CPU model | |
| Ethernet | 2 x GbE RJ45 intel i210-AT | |

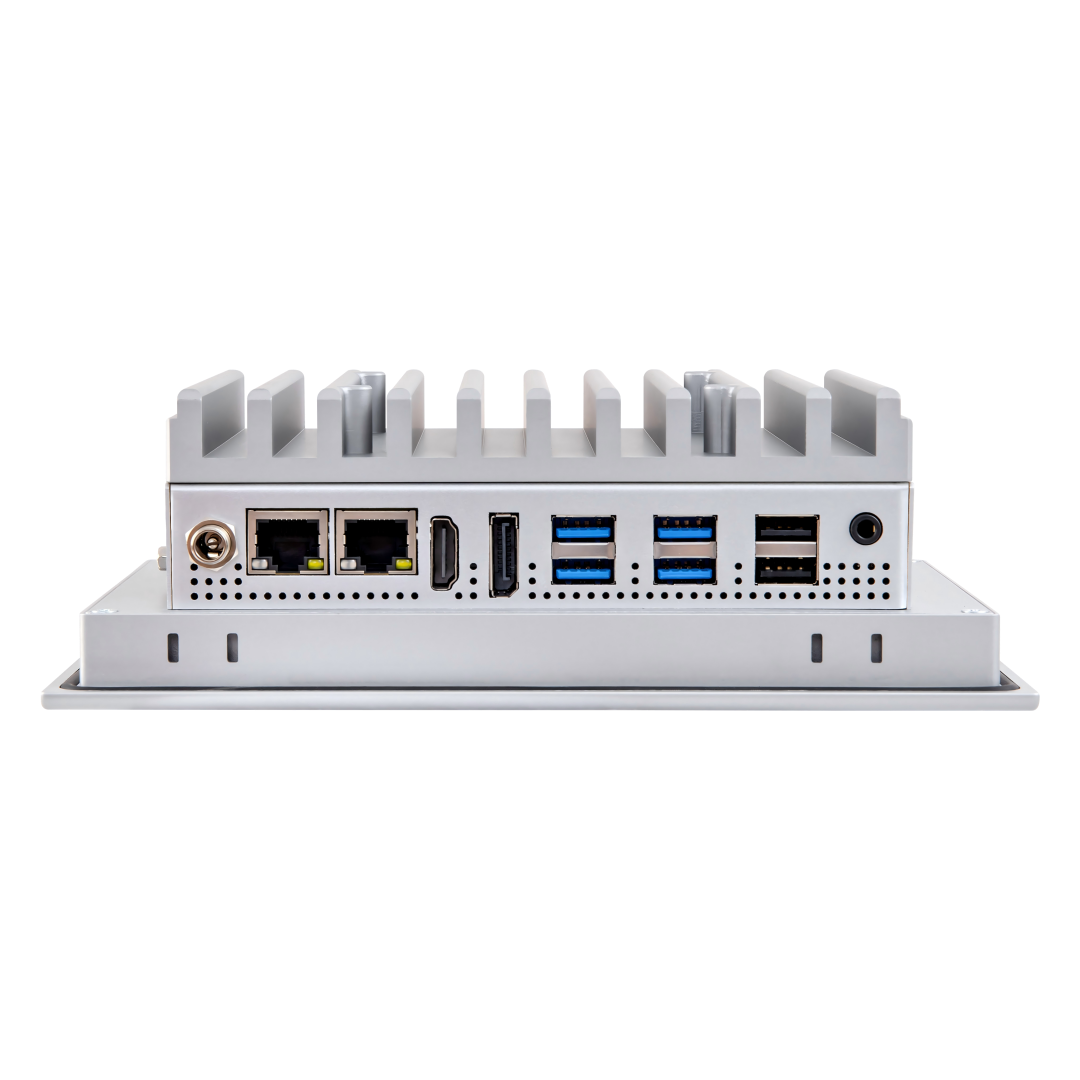

| I/O Port | 4xUSB3.0,2xUSB2.0 2xDB-9COM1&COM2,RS-232/485 1xAudio Line-out/Mic-in 1xDP( only N97) 1 x Audio Line-out + Mic-in 1xHDMI 2 x 8Ω 1W Amp Output (Opt.) 1xRemote switch Phoenix | |
| Storage*3 | 1 x mSATA (J1900), 1xM.2 2280 SATA/NvME 1x SATA( 2.5”SATA) | |
| Expansion Slot | Mini-PCIe × 1 full size supports WiFi/BT/4G (J1900) M.2 2230 x 1 (N97) | |
| Watchdog timer | 255 Levels | |
| OS Support | Windows® 7/8/10,WES 7,LINUX | |
| Mechanical | ||

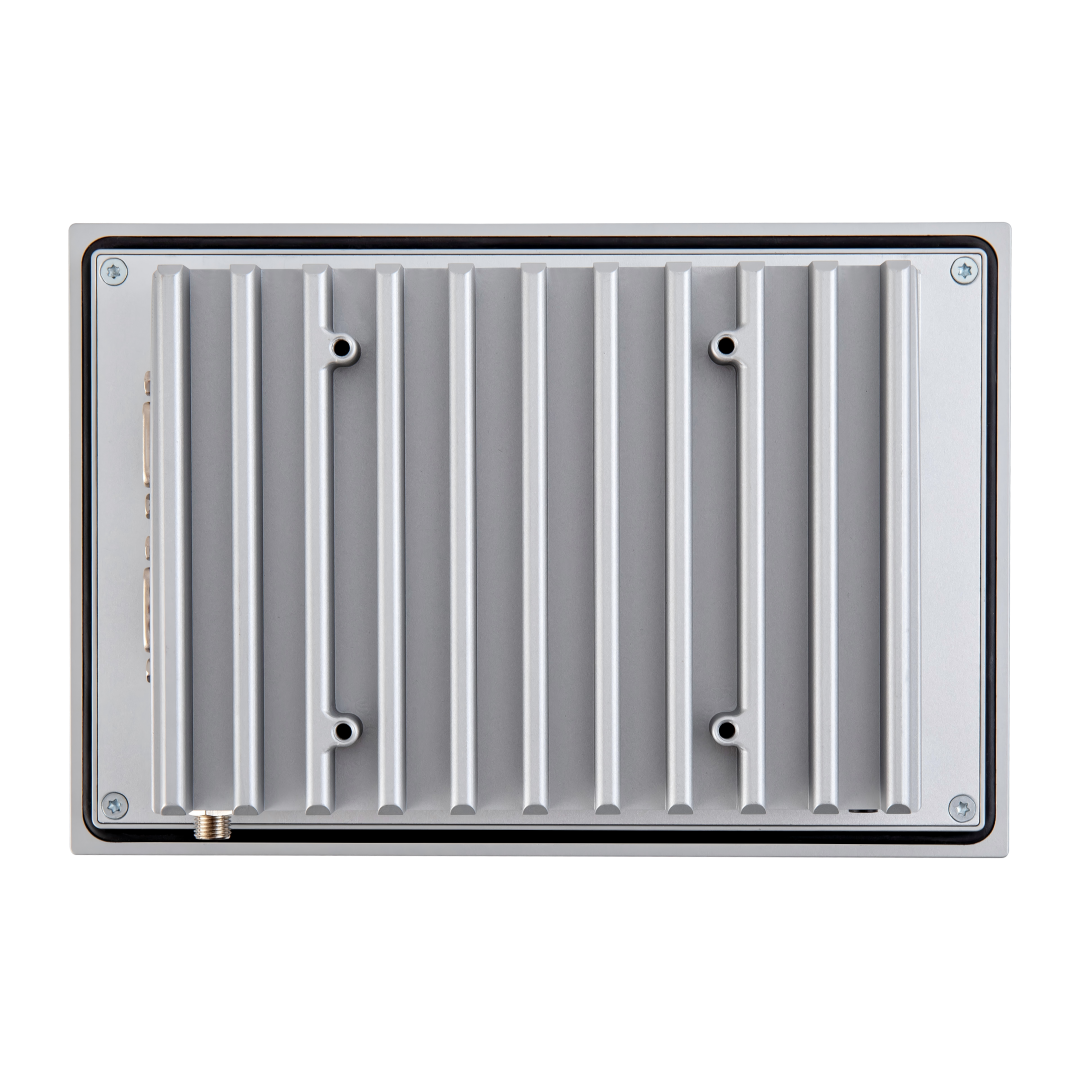

| Construction | Aluminum Design | |
| Mounting | VESA 75/ Panel Mount | |
| Dimension | 200.2x134.8x64.0 mm | |
| Gross Weight | TBD | |
| Environmental | ||
| Operating Temperature | 0℃~60℃ | |
| Storage Temperature | -20℃~70℃ | |
| Storage Humidity | 10~90%@30℃,non-condensing | |
| Power Supply | ||
| DC input | DC 12V | |
| LCD | ||
| Display Type | 7”TFT-LCD | |
| Resolution | 800x480 (Optional 1024x600) | |
| Max.Colors | 16.2M | |
| Luminance | 350cd/m2 | |
| Viewing Angle (CR>=10) | -70～70°(H),-50~70°(V) | |
| Back Light | LED | |
| Back Light MTBF(Hours) | 35,000 | |
| Touchscreen | ||
| Type | Flat 5-wire Resistive | P-CAP Multi Touch |
| Light Transmission | 78% | >85% |
| Life Time | >10 million activations | 7H |
| Recommended CPU models | ||
| *1 CPU Models | *2 Memory type | *3 Storage Type |
| J6412 | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA) |
| N95 | DDR4-3200MHz SO-DIMM x1, up to 16GB | 1x M.2 2280 SSD (SATA/NVMe) |
