Touch panel controller for 24/7 production and analysis

Pharmaceutical manufacturing and high-end analytical testing instruments impose extremely rigorous standards on equipment stability and data accuracy. Serving as the core control and computing unit, the HWAINTEK HPM132 series industrial all-in-one touch panel PC delivers precise process parameter regulation, data acquisition & analysis, and long-term failure-free operation, delivering robust assurance for pharmaceutical safety and testing reliability. Featuring an IP65-rated front panel, a highly reliable hardware platform and superior anti-interference performance, it is perfectly suited for GMP cleanroom environments and laboratory applications.

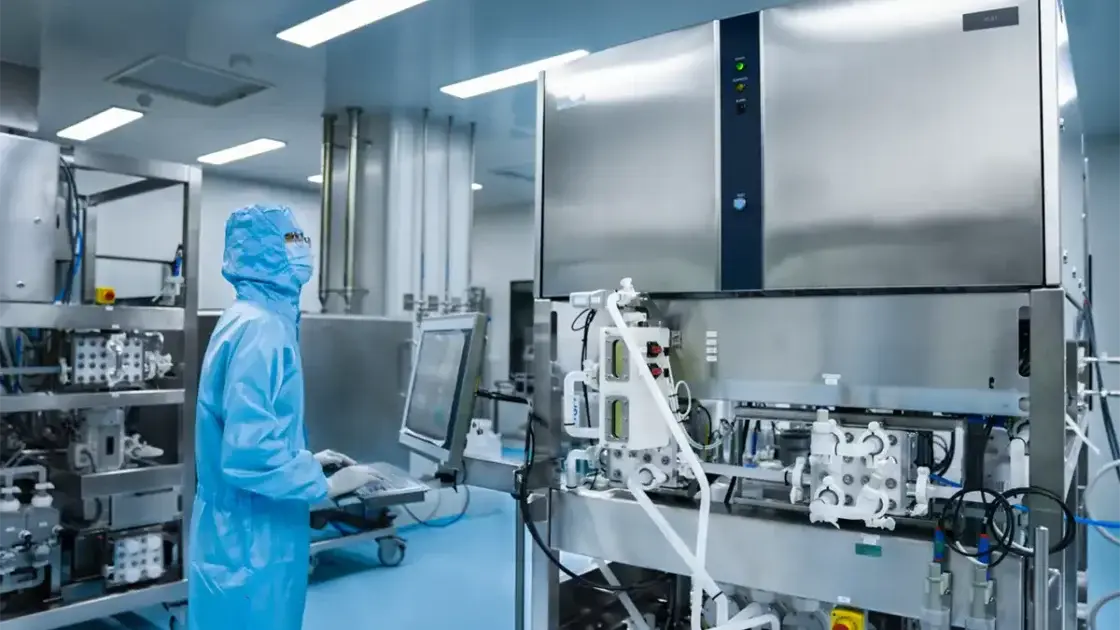

Pharmaceutical Production Line Segment: Continuous Manufacturing & Aseptic Control

This segment covers core pharmaceutical processes including raw material preparation, filling, lyophilization and packaging, all required to comply with GMP standards and strict high-cleanliness specifications.

Typical process workflows:

• Precision Batching & Filling: High-precision weighing, liquid metering and process control for aseptic filling.

• Environmental & Process Parameter Monitoring: Real-time regulation of temperature, humidity, pressure, cleanliness and lyophilization curves.

• In-line Inspection & Packaging: Visual appearance inspection, seal integrity verification and automatic production traceability.

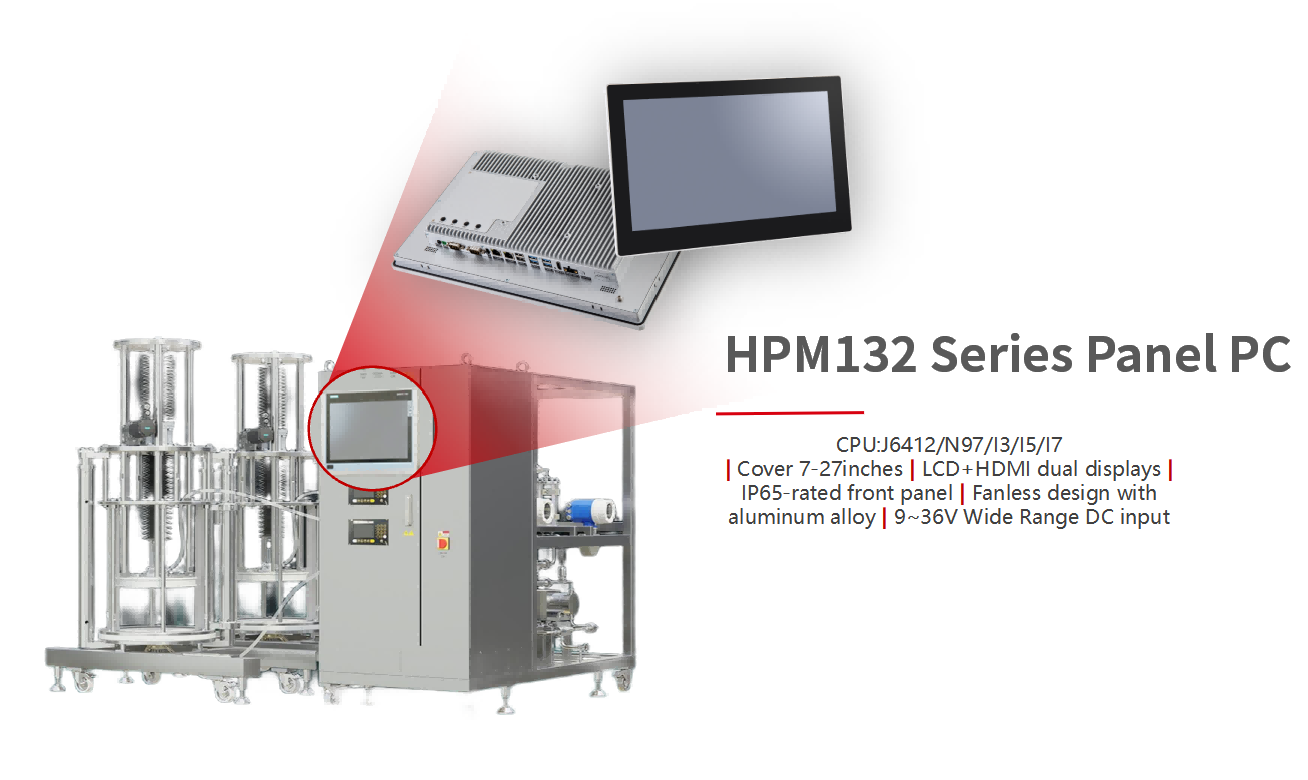

The HWAINTEK HPM132 touch panel PC acts as the system’s central processing hub here. Equipped with high-performance processors, a real-time control kernel and an intuitive human-machine interface (HMI), it drives multiple actuators and processes massive volumes of sensor data. Its IP65 front panel effectively resists washdown fluids and dust, while redundant power supplies and industrial-grade construction guarantee 24/7 uninterrupted stable production. The unit also supports recipe management, electronic batch records (EBR) and rapid fault response, fully satisfying the pharmaceutical industry’s stringent validation and traceability requirements.

High-End Analytical Instrument Segment: Precision Measurement & Data Analysis

This segment caters to sophisticated lab equipment for pharmaceutical composition analysis, microbial testing, stability trials and other advanced analytical workflows.

Key functional modules:

• High-Precision Signal Acquisition & Analysis: Capture and process weak signals from spectroscopy, chromatography, mass spectrometry and other analytical devices.

• Complex Algorithm Execution: Run professional analytical models to complete qualitative/quantitative analysis and result judgment.

• Long-Duration Stable Operation: Support extended experimental cycles and continuous data logging.

The HPM132 series provides a stable computing platform with abundant expansion interfaces (PCIe, RS232/485, USB, etc.), compatible with high-accuracy AD/DA conversion and professional software integration. It maintains extremely low measurement repeatability error and long-term signal drift. Its rugged all-in-one construction and IP65 front panel deliver reliable operation in diverse laboratory or on-site production environments, while operators can configure parameters and conduct real-time monitoring directly via the high-definition touchscreen.

Topology Architecture of Controllers for Pharmaceutical Production & Analytical Instruments

Built around the HWAINTEK HPM132 all-in-one touch PC, this layered control topology delivers dependable operation:

• Field Layer: Sensors, actuators and analytical modules connect directly to the controller’s I/O ports or fieldbus networks.

• Control Layer: Runs real-time operating systems or soft PLCs to execute PID control, recipe deployment and data processing, with intuitive HMI interaction via the touch display.

• Management Layer: Connects upward to SCADA, MES or LIMS systems via Industrial Ethernet / OPC UA, enabling ALCOA+ data integrity compliance, remote monitoring and predictive maintenance.

This layered architecture ensures long-term stable, high-precision performance for pharmaceutical production lines and high-end analytical instruments under harsh operating conditions.

Conclusion

With high-reliability computing power, accurate control performance, IP65 front panel protection and proven 24/7 continuous operation stability, the HWAINTEK HPM132 series industrial touch all-in-one PC serves as the ideal core unit for pharmaceutical manufacturing lines and high-end analytical testing instruments. It empowers the pharmaceutical sector to elevate production safety, testing accuracy and overall intelligence, safeguarding pharmaceutical quality and patient safety.
