HWAINTEK is an industrial panel PC manufacturer and OEM/ODM supplier, providing reliable HMI and edge computing solutions for factory automation, semiconductor equipment, machine vision and smart manufacturing applications.
RAM specifications depend on CPU variant, fitted with dual Intel i210-AT Gigabit Ethernet and two DB9 serial ports supporting RS-232/485 communication.
Production line HMI/SCADA monitoring/MES operation terminal/Food processing control/Pharmaceutical workshop panel/Water treatment control/EV charging station terminal/Automotive assembly control/Warehouse management touch terminal/Smart energy substation
| Specifications | ||
| System | ||
| Model | HPM132-AC/AR15M | |
| Processor*1 | The memory type is determined by the CPU model | |
| Memory*2 | 1x SODIMM DDR4，MAX 16GB（Some CPUs，32G optional） | |
| Ethernet | 2x GbE RJ45 intel i210-AT | |

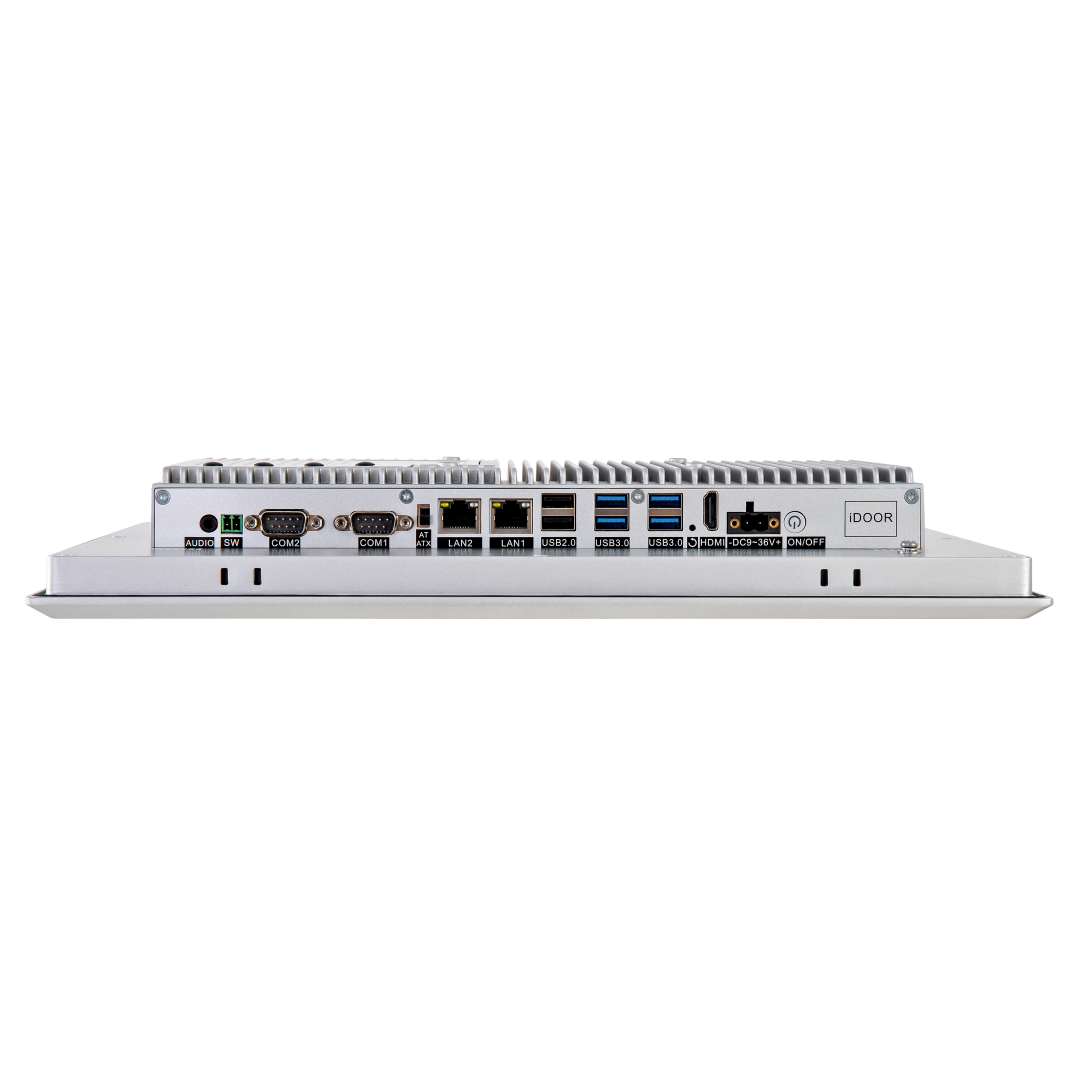

| I/O Port | 4 x USB3.0, 2 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485 1 x Audio Line-out/Mic-in 2 x 8Ω 1W Audio AMP out(Optional) 1 x Remote switch Phoenix 1 x AT/ATX Switch 1x HDMI 1x IDOOR ( 2xLAN / 4xCOM / 14xGPIO Optional ) | |
| Storage *3 | 1 x M.2 2280 SSD ( SATA/NVMe ) 1x SATA( 2.5”SATA) | |
| Expansion Slot | Mini-PCle x 1 full size with SIM Card for 3G/4G M.2 Key E x 1 for WIFI/BT M.2 Key B x 1 for 5G | |
| Watchdog timer | 255 Levels | |
| OS Support | Windows® 7/10/11,Linux | |
| Mechanical | ||

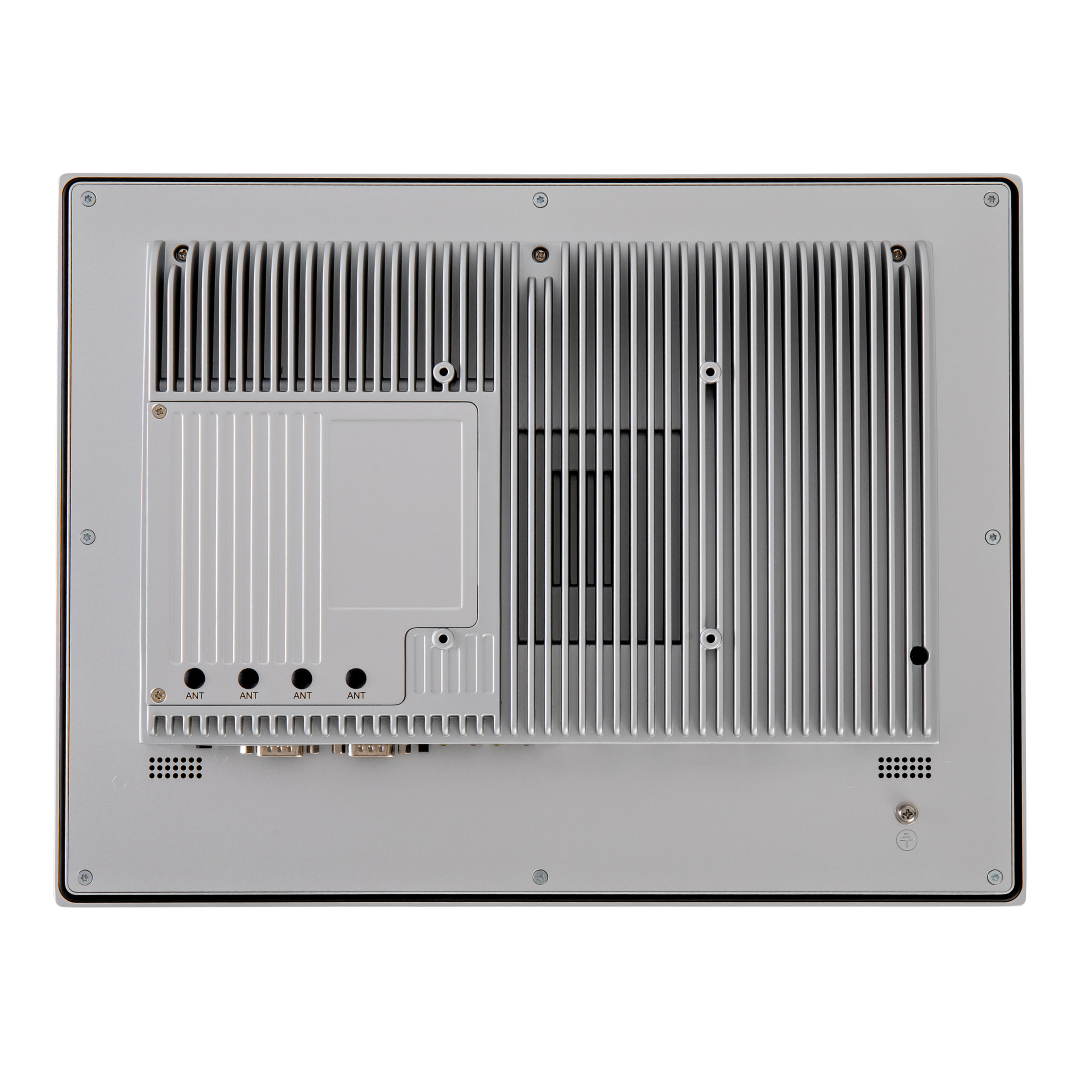

| Construction | Aluminum Design | |
| Mounting | VESA 100/ Panel Mount | |
| Dimension | 376.1 x 285.3 x 55.0 mm | |
| Gross Weight | 5.3KG | |
| Environmental | ||
| Operating Temperature | 0℃~50℃ | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 10~95%@40℃, non-condensing | |
| Power Supply | ||
| DC input | DC 9~ 36V 2-pin Phoenix Connector | |
| LCD | ||
| Display Type | 15”TFT-LCD | |
| Resolution | 1024 x 768 | |
| Max.Colors | 16.7M | |
| Luminance | 350 cd/m2 | |
| Viewing Angle (CR>=10) | -85～85°(H),-85~85° (V) | |
| Back Light | LED | |
| Back Light MTBF(Hours) | 50,000 | |
| Touchscreen | ||
| Type | Flat 5-wire Resistive | P-CAP Multi Touch |
| Light Transmission | 78% | >85% |
| Life Time | >5 million activations | 7H |
| Recommended CPU models | ||
| *1 CPU Models | *2 Memory type | *3 Storage Type |
| J6412 | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA), 1x SATA 3.0 (2.5") |
| N97 | DDR4-3200MHz SO-DIMM x1, up to 16GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i5-7200U | DDR4-2400MHz SO-DIMM x1, up to 16GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i7-7500U | DDR4-2400MHz SO-DIMM x1, up to 16GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i5-8250U | DDR4-2400MHz SO-DIMM x1, up to 16GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i3-1115G4 | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i5-1135G7 | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i7-1195G7 | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i3-1215U | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i5-1235U | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i7-1255U | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
| i7-8550U | DDR4-3200MHz SO-DIMM x1, up to 32GB | 1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5") |
